• Machined from solid cast acrylic rod
• Adapters thread directly into the meterbody
• Rod guided floats
• Super strong polysulfone float stops (guide rod holders)
• Clear, glass like finish
• Permanently silkscreened direct reading dual scale
• Permanently silkscreened white back reflector for enhanced readability

Specifications:

• Maximum Temperature:
  • 130°F / 54°C  at 0 PSI  -  70°F / 21°C  at 130 PSI
• Maximum Pressure:
  • 130 psig / 8.9 Bar
• Accuracy:
  • +/- 5%  Full scale
• Flow ranges (dual scale reading). The PDF files below can be printed to see actual size of scale.
  • 4-40 GPM   /   15-150 LPM  (file size 10k)
  • 6-60 GPM   /   20-230 LPM  (file size 10k)
  • 8-80 GPM   /   30-300 LPM  (file size 10k)
  • 20-100 GPM   /   75-375 LPM  (file size 10k)
• Pipe Sizes available:
  • 1-1/2 inch Female pipe threads.
  • 2 inch Female pipe threads.
• Dimensions:
  • Height: 14 inches  /  355.6 mm
  • Width (diameter): 3 inches  /  76.2 mm

Wetted material:

• Meter tube:
  • Cast Acrylic Rod
• Adapters:
  • PVC (optional: CPVC, Polypropylene)
• Float:
  • 316 Stainless Steel (optional Hastelloy C-276)
• Guide Rod:
  • 316 Stainless Steel (optional Hastelloy C-276)
• Float Stops:
  • Polysulfone with Aflas o-ring
• O-ring
  • Adapter seals:  Viton

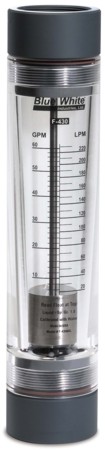

View a larger
